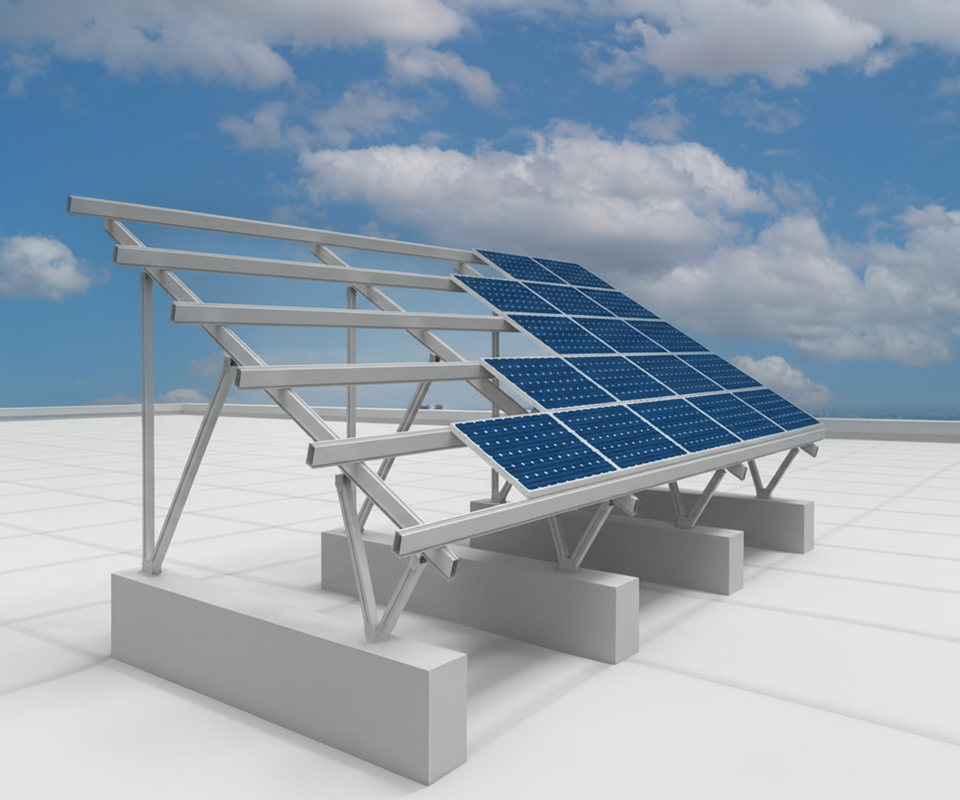

Reliable Backbone for Your Solar Plant
SWELECT MMS are engineered for durability, performance, and long-term reliability. Designed with premium materials, validated through simulation, and customizable to site layouts, they ensure maximum energy yield and structural stability across all installation types, with optional coastal-grade protection for high-salinity regions.
Key Features
-
Corrosion-resistant AZ-150 steel & Hot-Dip Galvanized (HDG) and ZAM columns
-
Optimized tilt angles for maximum energy yield (0–25°)
-
Wind-resistant design up to 180 km/h (IS 875 Part-3)
-
High-corrosion-resistant MMS suitable for harsh coastal, saline, and humid environments.
-
Designed to last for the duration of the entire solar asset
-
Customizable for SLD, bifacial modules & site-specific layouts
-
Verified stability with SOLIDWORKS & STAAD Pro
-
Thermal expansion gap: Min. 20 mm

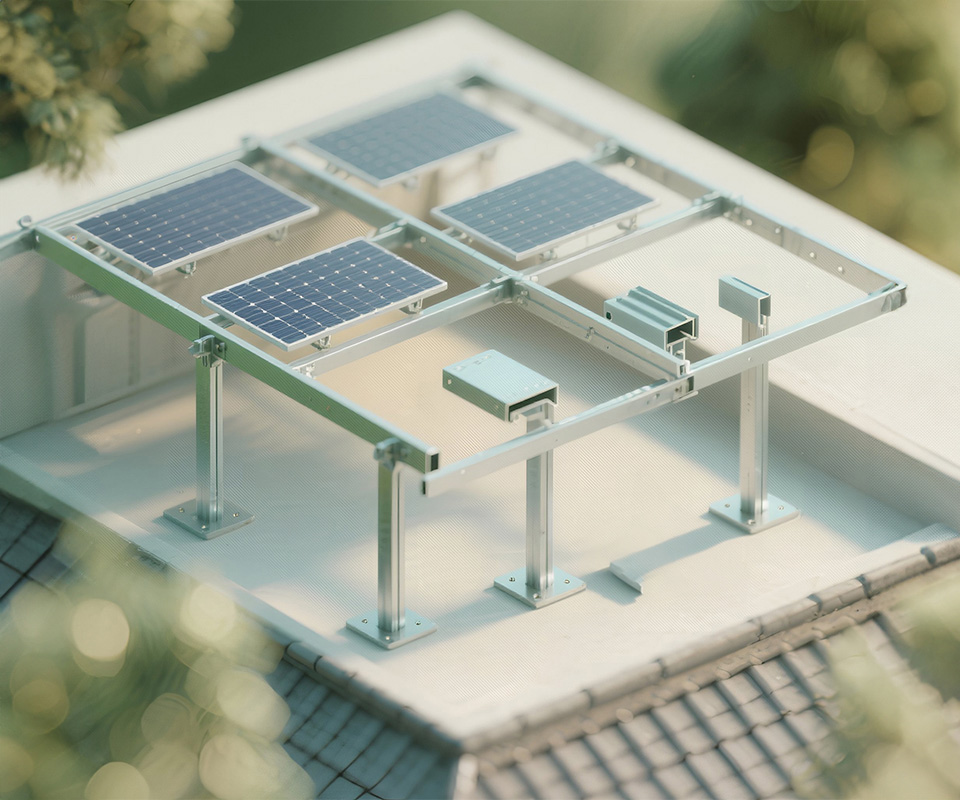

Terrace / Flat Roof MMS
Ideal for Urban Rooftops & Commercial Installations
-
Lightweight yet robust, optimized for terrace or flat roofs
-
Easy installation with concrete block foundations
-
Fully customizable layout to maximize energy yield
Quick Specs
-
Ground Clearance: 300 mm
-
PV Orientation: Portrait (customizable)
-
Components: Column post, Rafter (C profile), Purlin (HAT/C profile)
-
Profile Thickness: C profile 1–2.5 mm, HAT profile 0.75–1.2 mm

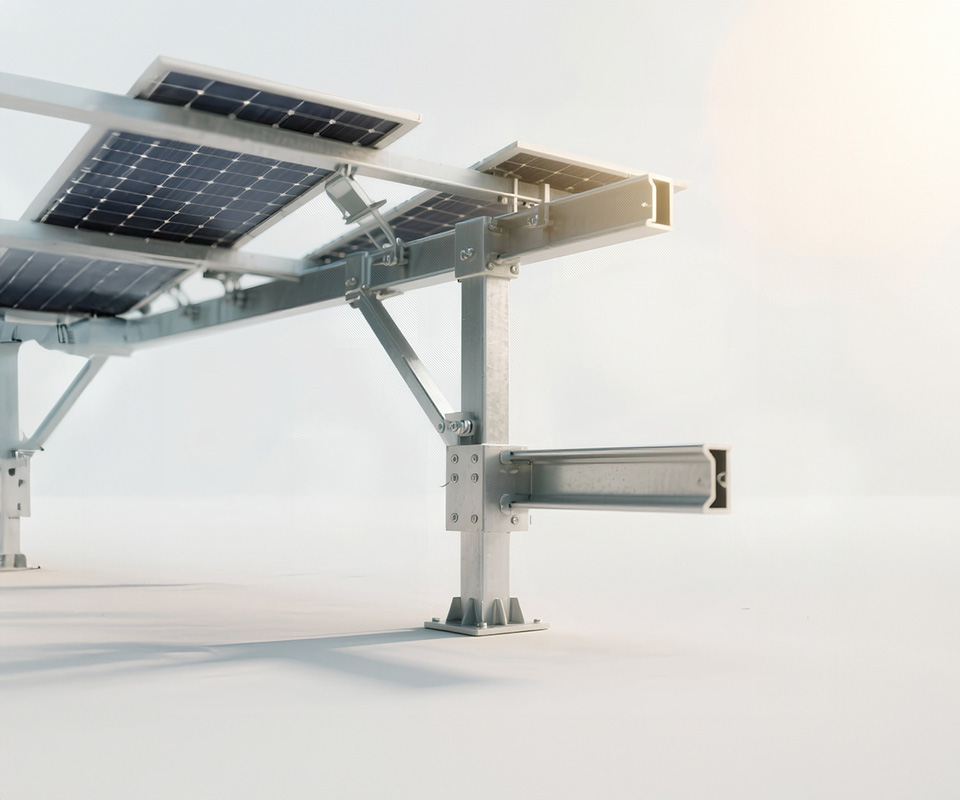

Ground Mount MMS
Site-specific MMS design developed from the given layout and SLD, validated through simulation testing in line with the wind load details outlined in the specification.
Engineered for Large-Scale Solar Farms
-
Maximum stability for open-field installations
-
Customizable column heights and ground clearance (500–1000 mm)
-
Adaptable to site layouts and Single Line Diagram (SLD)
Quick Specs
-
Foundation: Pile foundation & customizable as per soil conditions
-
PV Orientation: Portrait (customizable)
-
Components: Column post, Rafter & Bracing (C profile), Purlin (HAT/C profile)
-
Profile Thickness: C profile 1–2.5 mm, HAT profile 0.75–1.2 mm

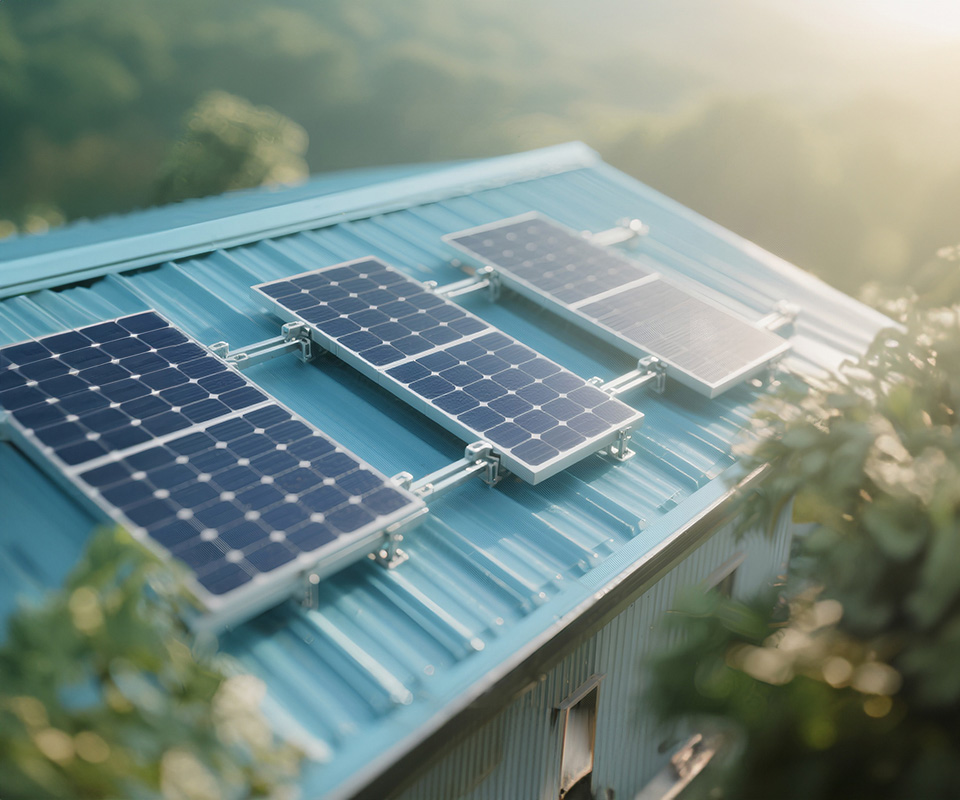

Sheet Roof Mount MMS
Sheet Roof MMS are designed with Aluminium Rail & Aluminium clamp combination for longer life period and easy installation.
High-Performance Solution for Metal Roofs
-
Suitable for trapezoidal & corrugated sheets
-
Combination of AZ-150 steel & Aluminium 6063 T6 for strength and durability
-
Ideal for coastal and high-wind regions
Quick Specs
-
PV Orientation: Portrait (customizable)
-
Components: Steel: Rafter & Purlin (C/Z profile) Aluminium: Rails, mid & end clamps, rivets
-
Profile Thickness: C/Z profile 1–2 mm, Aluminium rails 75 mm height, prefabricated Ø5 mm holes
-
Aluminium Mid Clamp: Min. 20 mm PV-to-PV gap
SWELECT MMS solutions deliver safe, durable, and high-performance structures for
every solar project type rooftop, terrace, sheet roof, or ground-mounted.
